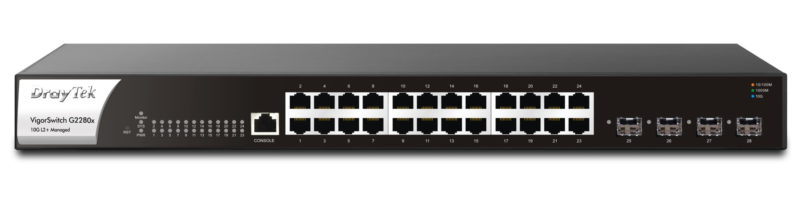

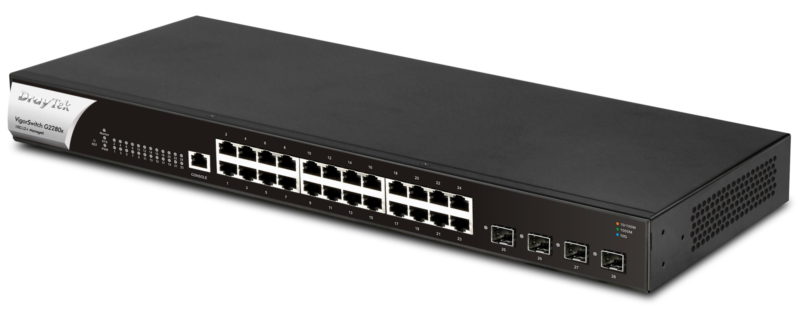

DrayTek VigorSwitch G2280X 24-Port Gigabit + 4 Port 10Gb/s Switch
£235.00 ex VAT
Out of stock
The DrayTek VigorSwitch G2280X 24-Port Gigabit + 4 Port 10Gb/s Switch key features:
- 24 x RJ-45 Gigabit Ethernet Ports
- 4 x SFP+ 10GbE Ports for Uplink / Fibre
- 802.1q VLANs (Tag, Port & MAC-based)
- VLAN Routing & Static Route with DHCP server / relay
- Virtual Router Redundancy Protocol
- QoS for Application traffic prioritisation
- 802.1x RADIUS / TACACS+ Port Authentication with Accounting
- Voice VLAN for QoS (OUI Mode)
- Access Control List (ACL)
- Port Mirroring & Link Aggregation
- IGMP Snooping/Querier (Up to 256 Multicast Groups)
- IPv4 and IPv6 Support
- Hardware Monitoring
- Centrally managed or standalone operation
- Console Port
Out of stock
Description
DrayTek VigorSwitch G2280X 24-Port Gigabit + 4 Port 10Gb/s Switch
High Speed 10 Gigabit SFP+ Uplinks
4 SFP+ ports allows your network to utilise 10Gbps ports to link Switches, Servers and Networked Storage with more bandwidth. This helps you reduce the risk of bottlenecks occurring in your network.
Benefits:Â Easily increase network throughput and meet demanding bandwidth requirements.
Great Security Features
Protect your network against unauthorised access and network problems with 802.1X port authentication, DHCP Snooping, IP Source Guard and Access Control Lists. Check the features sections for more information.
Benefits:Â Secure & control access to your network.
Voice VLAN & Surveillance VLAN
Automatically assign VLANs and QoS configuration to devices with matching MAC address OUI upon connection to the switch.
Benefits:Â Reduce broadcast traffic and allow more control when implementing security policies.
ONVIF IP Camera Management
Manage ONVIF capable IP Cameras & NVR through the VigorSwitch. Automatically detect IP Camera topology on the network and view the video feed of connected cameras.
Benefits:Â Simplify management of connected IP Cameras and receive automated alerts for throughput issues.
Advanced Layer 2+ Routing Features
Expand your network with support for Layer 3 features such as Static Routes and VLAN Routing, to connect separate networks through the VigorSwitch.
Benefits:Â Provides a fast and secure bridge between networks.
Manage Centrally or Stand-Alone
Configure and monitor the switch through the VigorACS cloud management platform, DrayTek’s Central Switch Management for Vigor routers, or directly via the device’s Web Interface.
Benefits:Â Saves time and money. Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.
Hardware Monitoring
Monitor and graph switch temperature and power status remotely, with alerts for temperature & power supply issues.
Benefits:Â Email notification alerts for power loss, downtime or configuration changes.
IP Conflict Prevention
Use DrayTek’s IP Conflict Prevention wizard to lock in the network setup, protecting against ARP spoofing and unknown DHCP servers.
Benefits:Â Improves network security. Quickly and easily determine the cause of network issues if they occur.
VigorSwitch G2280x
10GbE Gigabit Switch with 24 Gigabit Ports & 4 10GbE SFP+ Uplink Ports
The VigorSwitch G2280x is a high-performance, L2+ Managed Gigabit Ethernet switch. With 24 1-Gigabit RJ-45 LAN ports and 4 10-Gigabit Ethernet SFP+ ports.
Use the 4 SFP+ ports for high speed uplinks between Switches, Servers and Network-Attached-Storage at up to 10 Gigabits per port.
Designed for centralised management, the VigorSwitch G2280x can be managed directly through its web interface, or provisioned and monitored through both the VigorACS management platform and/or, a DrayTek Vigor router’s Central Switch Management. Easily provision the VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network, with VLANs spanning multiple switches.
