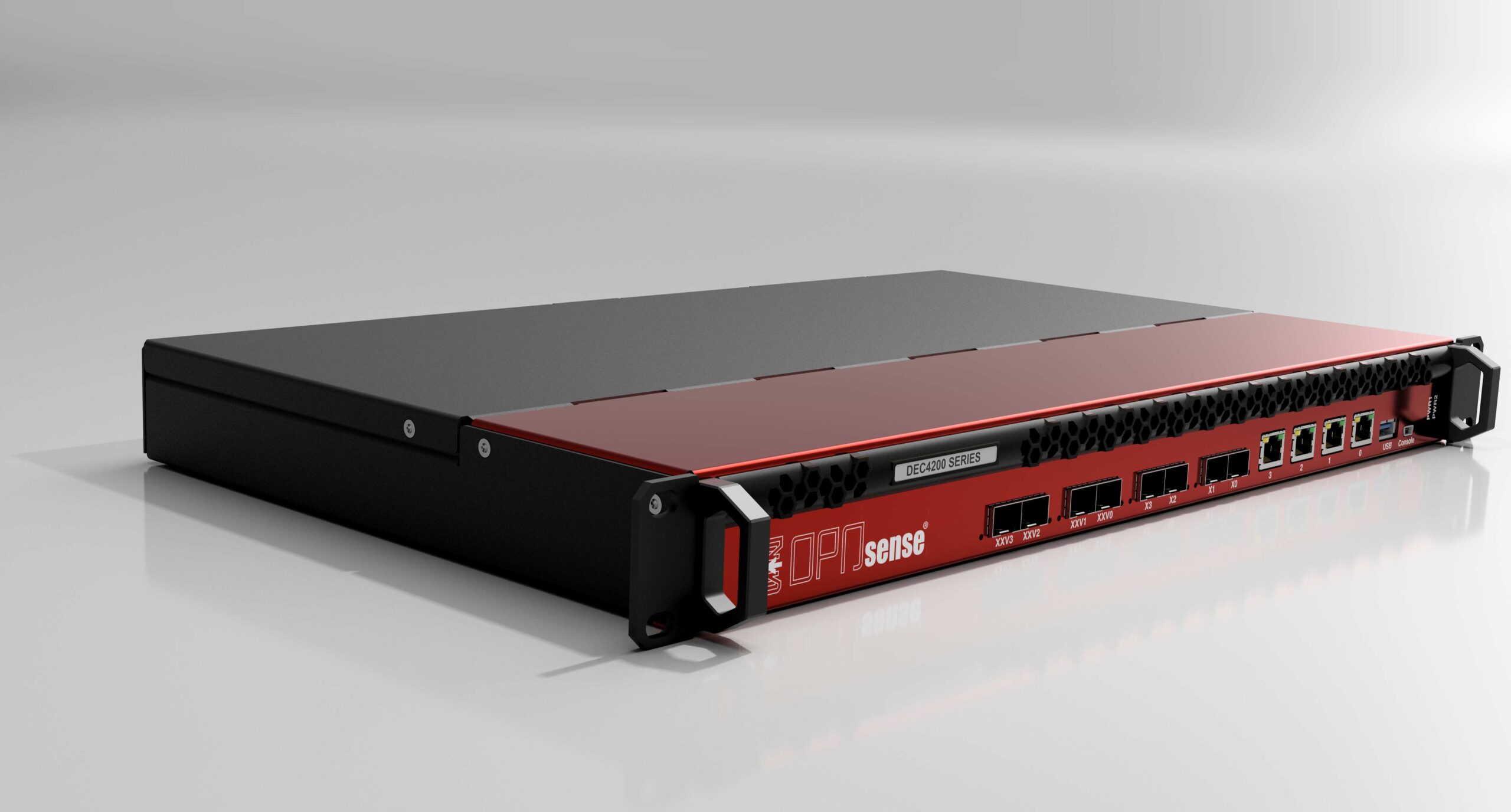

DEC4240 OPNsense® Rack Security Appliance – Enterprise & Datacenter Edition

£3,455.00 ex VAT

Description

Models	DEC4240

Software
Preinstalled software	OPNsense®
License	Open Source + 1 year free Business Edition
Hardware Specifications
SFP28 Ports [25Gbps]	0
SFP+ Ports [10Gbps]	4
GbE RJ45 Ports [ 100/1000/2500Mbps ]	4
USB 3.0 Ports	1
Console Port	1
Internal Storage	1TB M.2. Solid State Flash
Memory	64GB DDR4
CPU Cores	8 (max frequency 3.1Ghz)
Virtual Interfaces (802.1q VLANS)¹	4093
System Performance
Firewall Throughput	21.1Gbps
Firewall Packets Per Second	1760Kpps
Maximum Firewall Port to Port Throughput	9Gbps
Firewall Port to Port Packets Per Second	122000
Concurrent Sessions	63000000
New Connections Per Second	50000
Firewall Latency (average)	100us
Firewall Policies (Recommended Maximum)¹	10000
IPsec VPN Throughput (AES256GCM16)	2.5Gbps
IPsec VPN Packet Per Second (AES256GCM16)	220Kpps
Threat Protection Throughput Packet Per Second	291Kpps
Threat Protection Throughput	~3.5Gpbs
High Availability with State Synchronisation	Requires Two
Dimensions
Height x Width x Depth (mm)	43.8 (1U) x 482.6 (19″) x 302 (274 excl. mount/handle)
Height x Width x Length (inches)	1.73 x 19 x 11.9 (10.8 excl. mount/handle)
Form Factor	19″ Rackmountable
Weight (appliance only)	4.70Kg
Environment
Power Requirements	100-240VAC, 50-60Hz
Maximum Current (Single PSU)	2.6A
Power Consumption (Typical – Single PSU)	55W
Heat Dissipation	187.6 BTU/hr
Operating Temperature	0 to +45°C
Storage Temperature	-20 to +70°C
Humidity	10-90% non-condensing
Regulatory Compliance
	FCC part 15 Class A, CE, Rohs
